Equipment
- Samsung ceiling cassette mini-split system; PCB (main circuit board) replacement
What the customer reported
The Samsung ceiling-cassette mini-split was running but doing it badly, neither heating nor cooling consistently, intermittent fan operation, and a thermostat that wasn’t holding setpoint. Bills had climbed and comfort had dropped. The homeowner had already tried the obvious user-side fixes (filter, thermostat reset) and called us when those didn’t work.
What we found
The diagnostic walked through the system in order: indoor cassette unit, outdoor condenser, refrigerant pressures, electrical connections, thermostat wiring, control system handshake. The pattern of symptoms: intermittent, inconsistent, multi-mode, pointed at the control side rather than refrigerant or mechanical failure. The main PCB (printed circuit board) inside the indoor unit was the culprit. Capacitor failure on the control side was scrambling the unit’s communication with the thermostat and the outdoor compressor. Cleaning the filters and coils and topping off the refrigerant balance helped at the margins but the PCB was the real fix.
What we did
- Replaced the failed PCB with a genuine Samsung part (mini-split control boards are model-specific, generic replacements don’t talk to the outdoor unit reliably)
- Adjusted refrigerant charge to factory spec
- Cleaned the indoor cassette coil and filters
- Recalibrated the thermostat communication
- Full run-test through both heat and cool modes to confirm stable cycling
The detail that mattered
PCB failures on mini-splits often get misdiagnosed as refrigerant problems because the symptoms overlap. Putting a new charge in a unit with a bad control board is a classic way for a homeowner to spend money on a repair that doesn’t fix anything. The diagnostic time we spent isolating the actual fault is what made the repair stick, if we’d jumped to “add refrigerant” we’d have been back in two weeks.
What the homeowner got
Mini-split restored to stable heat and cool operation, thermostat holding setpoint, no more intermittent fan behavior. Repair labor under our standard 1-year repair warranty; the new PCB has Samsung’s factory parts warranty on top. Bills dropped back to where they were before the PCB started failing.

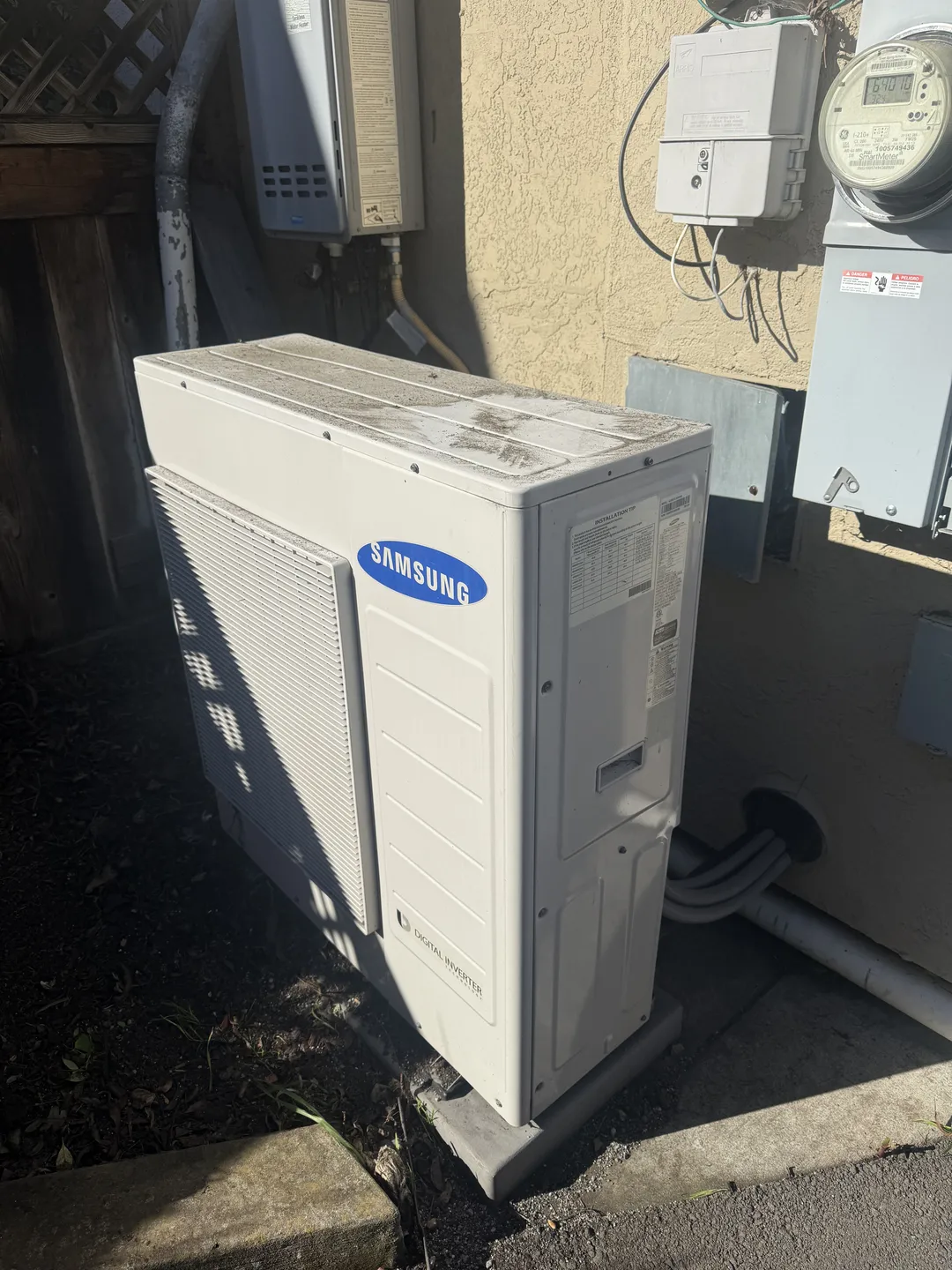

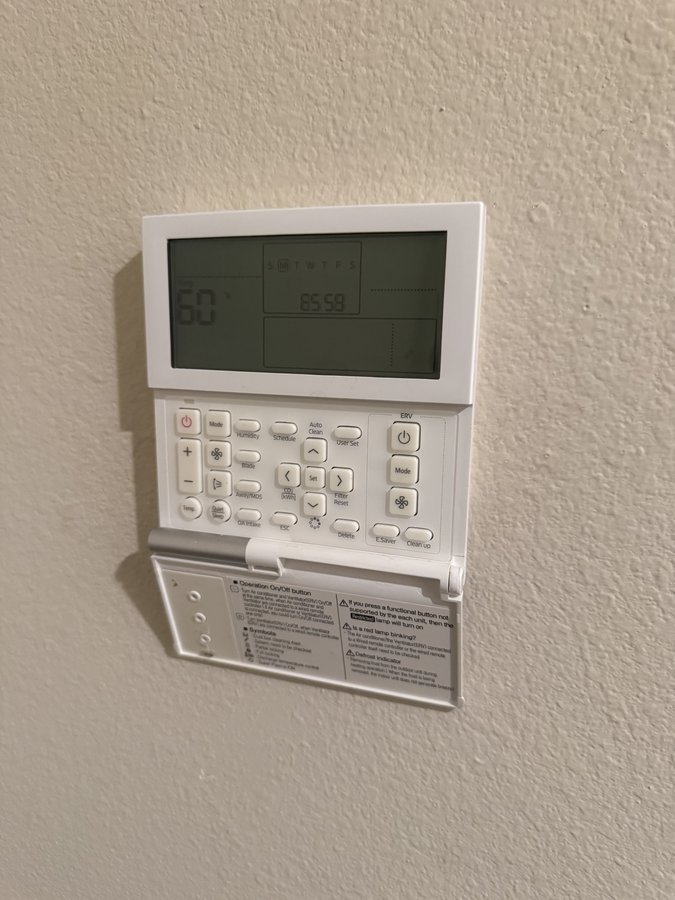

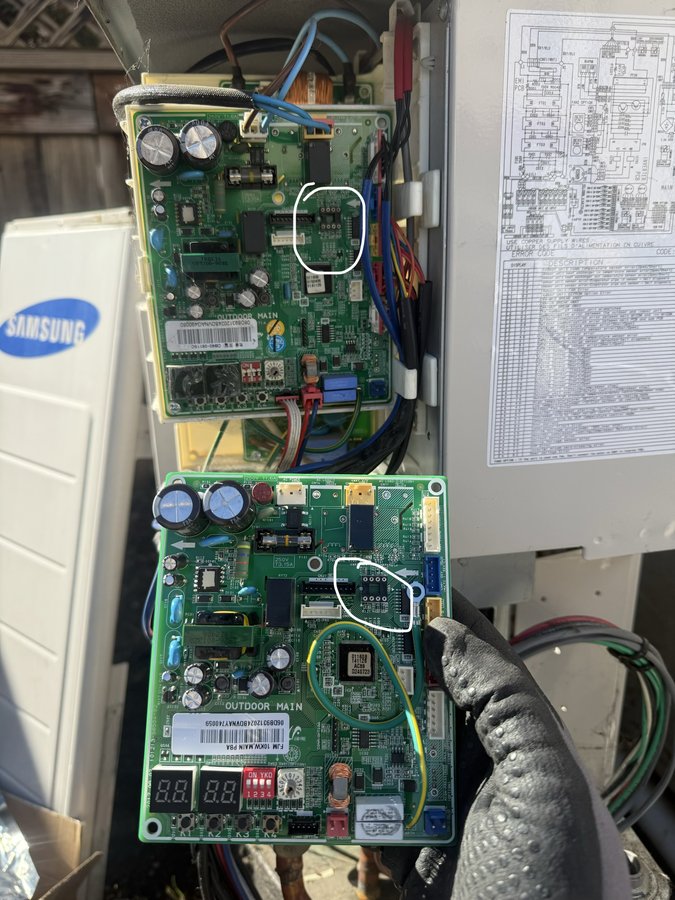

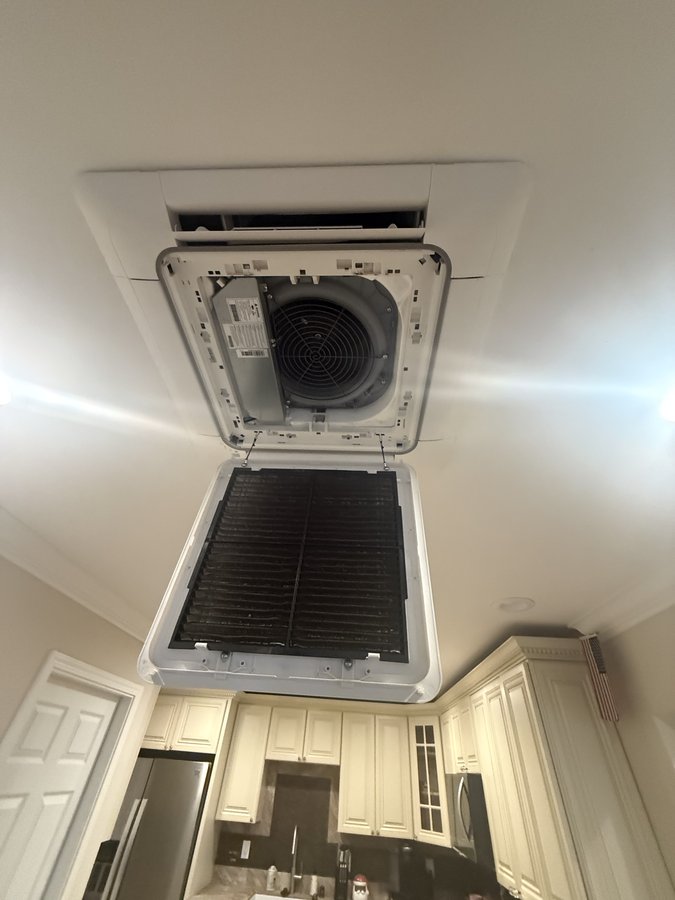

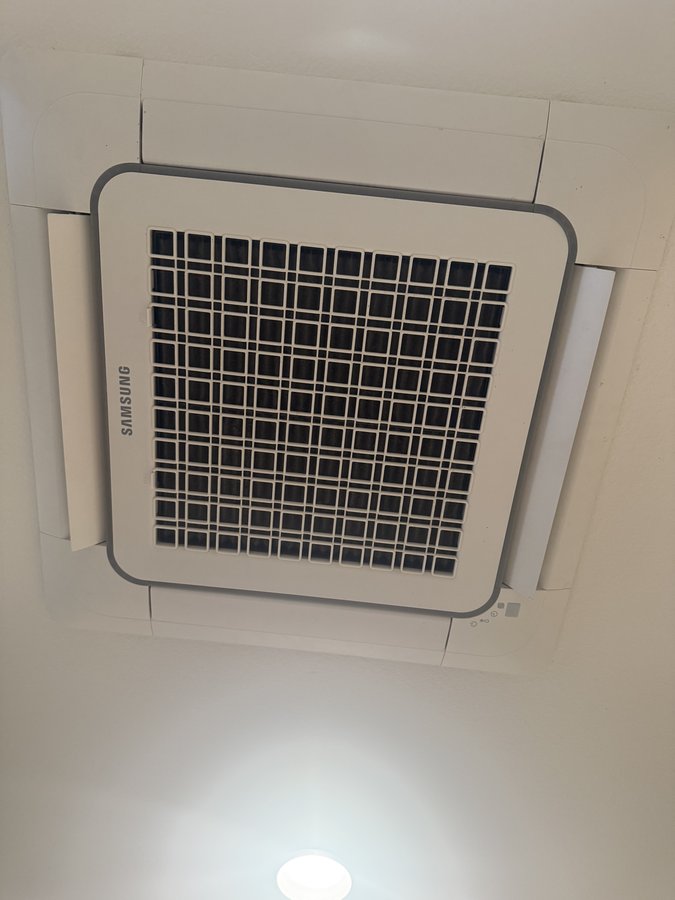

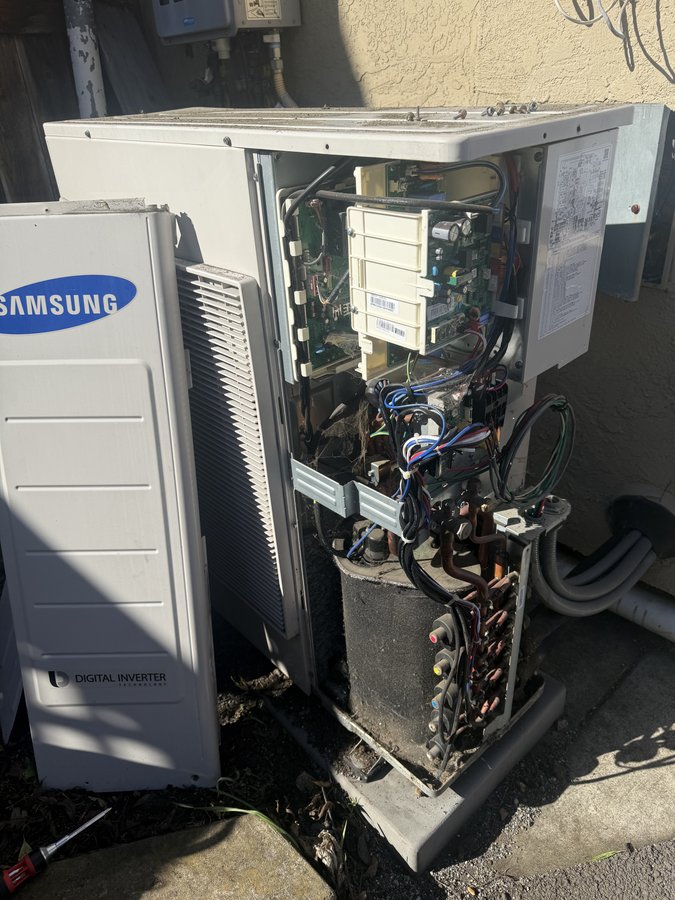

The photos below show the original cassette unit, the diagnostic in progress, the failed and replacement PCBs side by side, and the restored unit.
