Equipment
- Dual Goodman heat pump system (dual air handlers + dual condensers replacement)
The starting situation
A Morgan Hill homeowner had inherited a two-system HVAC setup that was original to the house, two outdoor condensers, two indoor air handlers, single-stage equipment that had been undersized for the square footage from day one. The result: noisy operation, uneven room temperatures, and electric bills that climbed every summer. The customer wanted year-round comfort without throwing money at piecemeal repairs on equipment that was already at end-of-life.
Our load calculation confirmed what the bills were telling us, the existing system was about 15% undersized for the actual cooling load. Replacing like-for-like would just perpetuate the original mistake. We sized the new equipment to the actual Manual J load, not to what was already there.
What we installed

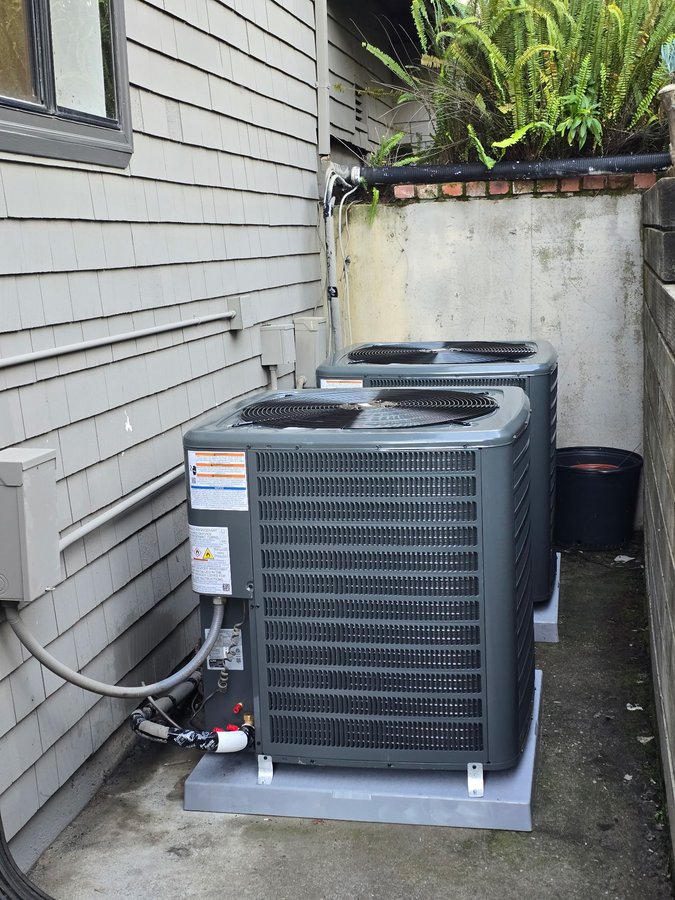

- Two Goodman high-efficiency heat pumps: properly sized to the calculated load (not the previous undersized footprint)

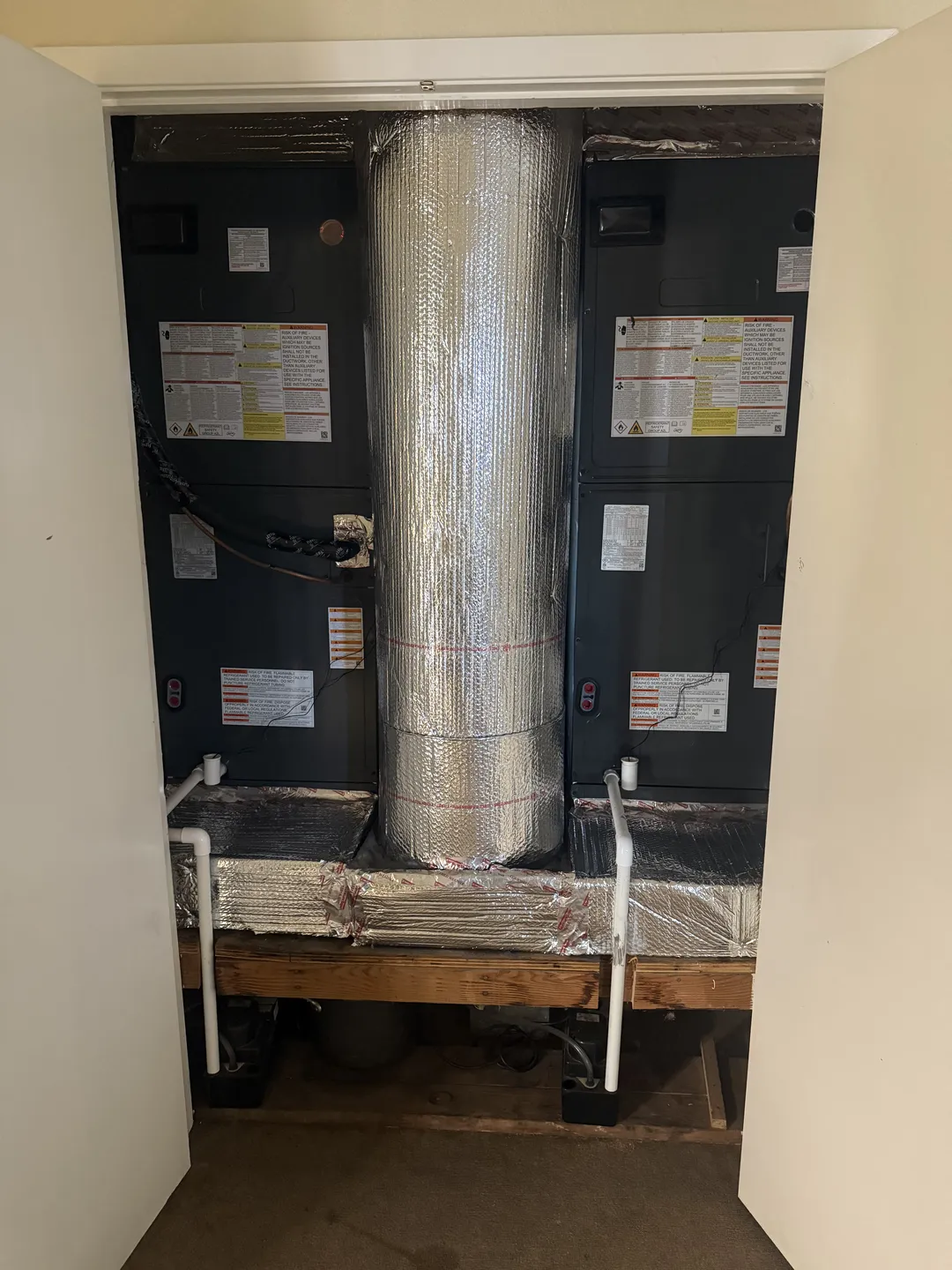

- Two matched indoor air handlers: one per zone, factory-charged
- New refrigerant linesets on both systems
- Ductwork sealing improvements: the existing ducts had measurable leaks at several joints that were costing the homeowner conditioned air; we sealed before connecting the new equipment

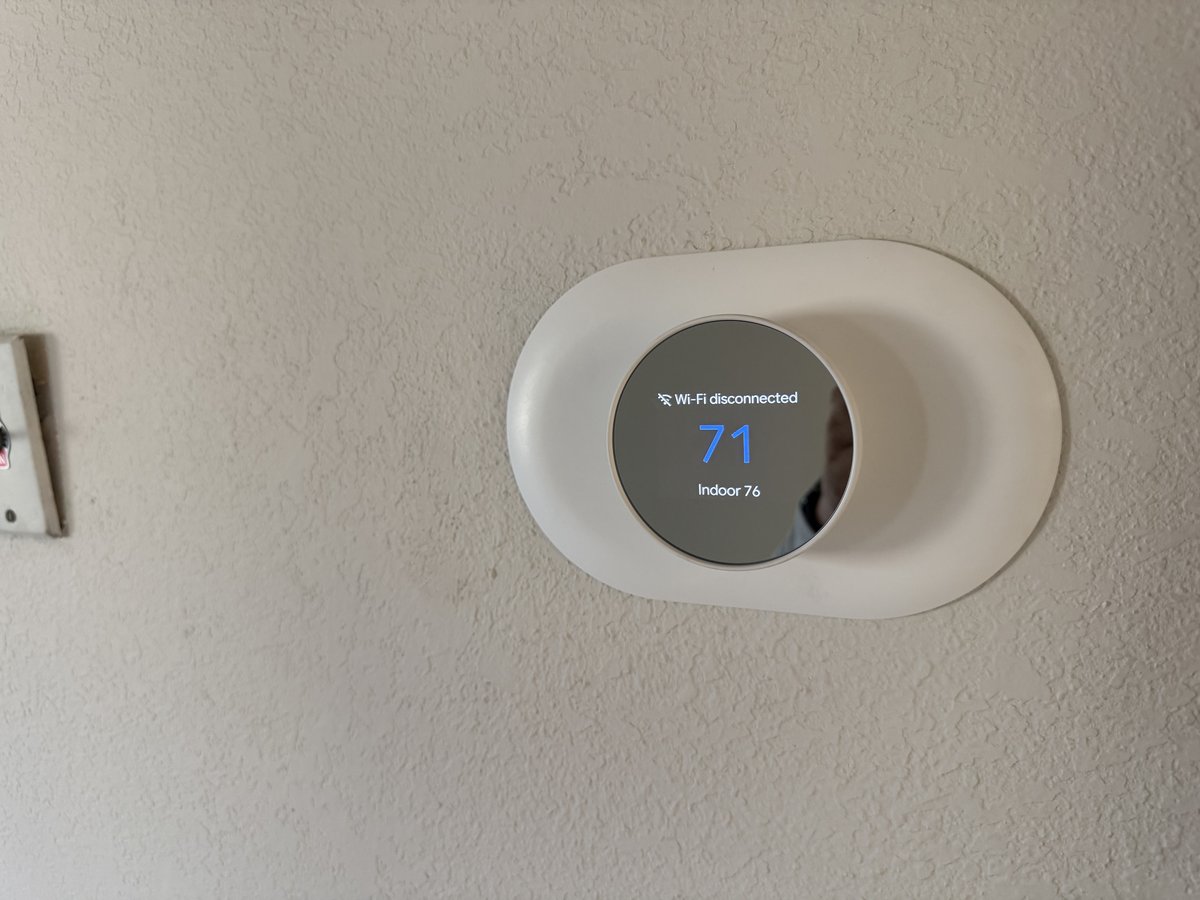

- Smart thermostat with heat-pump-aware staging
- New condenser pads for both outdoor units
The detail that mattered
On dual-system installs the temptation is to treat them as two separate jobs. We staged this one as a single coordinated install, both old systems came out the same day, both new systems went in, and we did the ductwork sealing while the systems were apart and accessible. That sealing pass is the kind of work that’s easy to skip and that no homeowner sees, but it’s what made the new system actually deliver its rated efficiency instead of leaking conditioned air into the attic.
If you’re getting bids on a multi-system replacement and nobody mentions the ductwork, ask. Old duct leaks attached to new equipment is one of the most common ways a homeowner ends up disappointed with their efficiency upgrade.
What the homeowner got
Both systems powered up balanced on the first run cycle. Temperature differences between rooms collapsed because the airflow was now matched to the load instead of fighting it. The smart thermostat handles the staging automatically, no manual heat/cool changeover needed. Covered under our 10-year parts + 10-year labor warranty on the installation, plus Goodman’s factory equipment warranty.

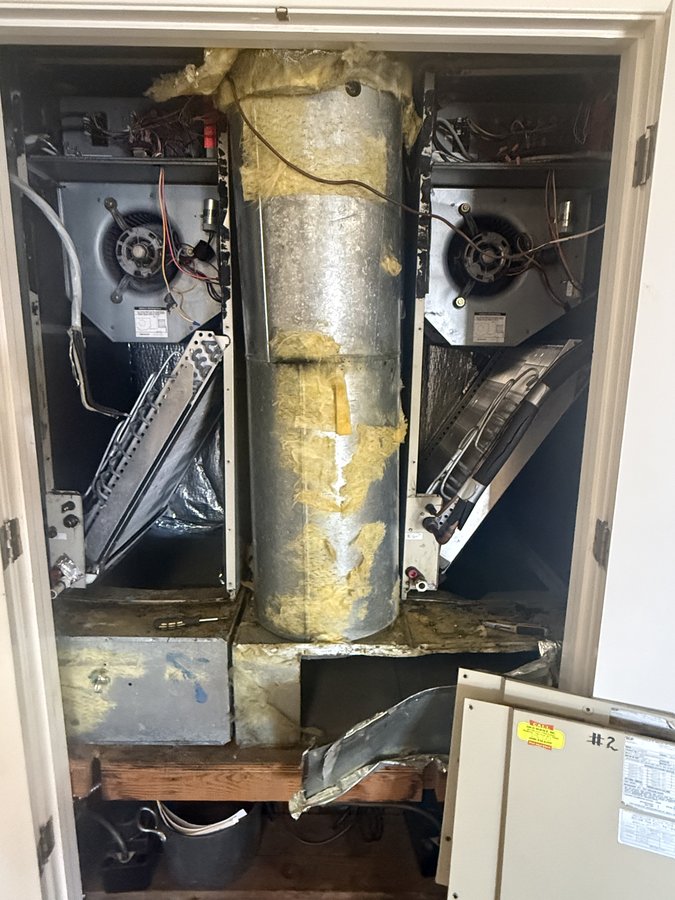

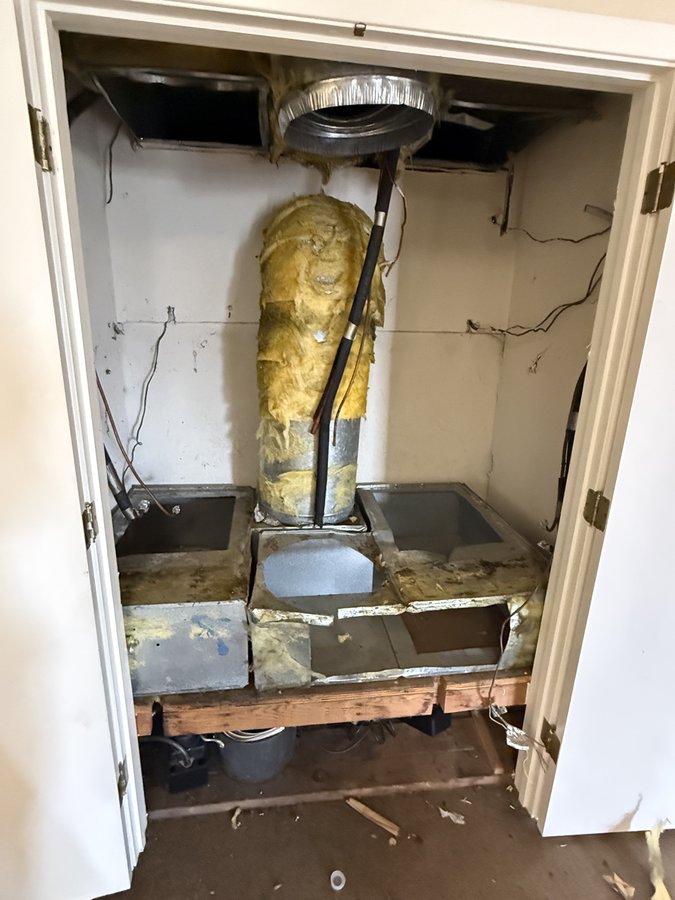

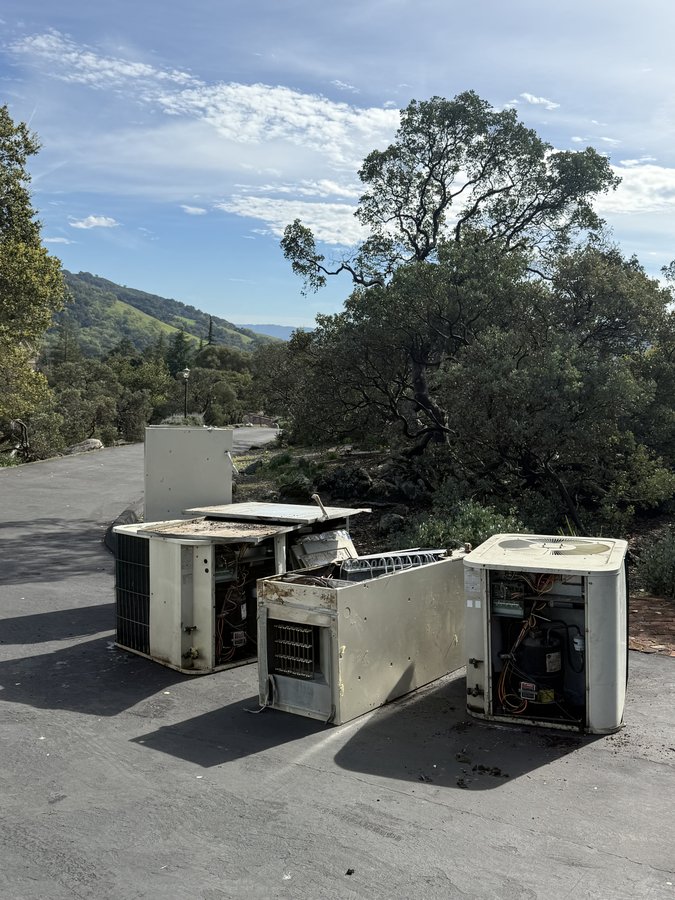

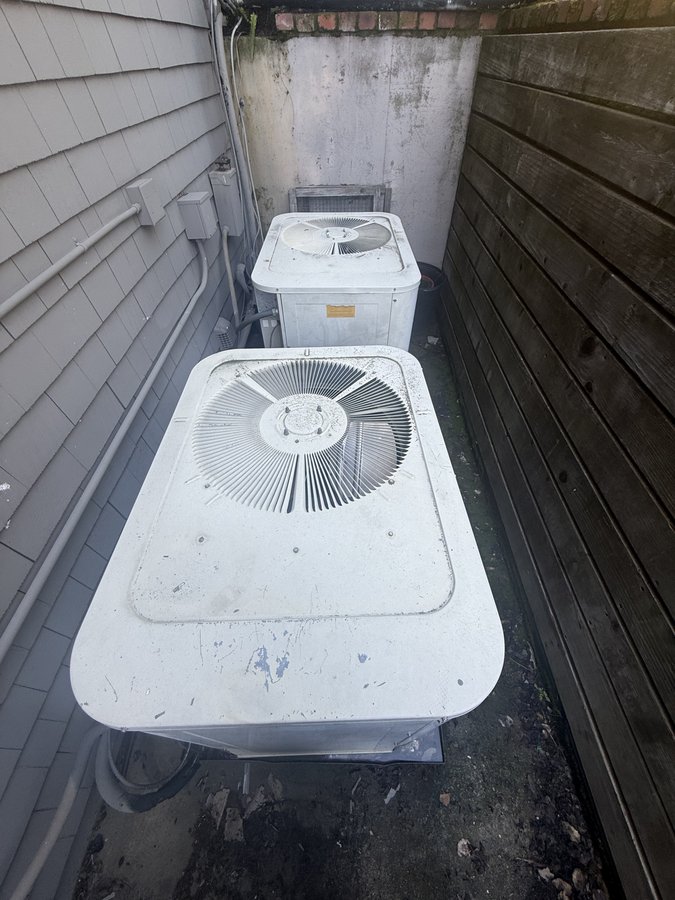

The photos below show the original equipment that came out, the swap in progress, and the finished condensers, air handlers, and thermostat install.
Before
After
