Mitsubishi Mini-Split Remote Symbols Explained

If you’ve got a Mitsubishi ductless system, the remote does most of the work. But that little handset is covered in icons, and the manual usually lives in a drawer nobody opens. Here’s what those symbols actually mean, in plain English, so you can set the thing the way you want without guessing.

We work on Mitsubishi systems all over the Tri-Valley, and most “my mini-split is broken” calls turn out to be a setting on the remote. So start here.

The mode symbols (this is the important one)

Mode is what your system is doing. On most Mitsubishi remotes you cycle through modes with a mode button, and the screen shows an icon for the one you’ve picked.

• Snowflake (cool): The system pulls heat out of the room and brings the temperature down. If you’re in cool mode but the room’s already below your setpoint, the unit won’t do much. That’s normal.
• Sun (heat): Heating mode. The system runs in reverse and warms the room up to your setpoint. On a cold morning a heat pump can take a few minutes to get going, and you may feel cooler air first while it ramps up.
• Water drop (dry): Dehumidify mode. Instead of chasing a temperature, it focuses on pulling moisture out of the air, usually with a slower fan. Handy on a damp day when the room feels sticky but isn’t really hot.
• Auto: You set a temperature and the unit decides whether to heat or cool to hold it. Some people love this, some find it switches more than they’d like.
• Fan symbol (fan only): Just moves air, no heating or cooling. Good for circulation.

If you pick a mode and nothing seems to happen, check the setpoint against the room. In cool mode with the temperature set too high, or heat mode set too low, the system thinks it’s already done.

Fan speed

Separate from mode, you’ve got fan speed. The icon usually shows a fan with bars or curved lines, and you’ll see settings that step from low up to high, plus an auto option. More bars means more airflow.

Auto fan lets the unit decide how hard to blow based on how far it is from your setpoint. Worth knowing: fan speed changes how much air moves, not how cold or warm the air is. Turning the fan to high won’t make a room colder past your setpoint, it just moves more air.

Vane and swing (which way the air points)

The vane controls air direction. The icon usually looks like a louver or a small horizontal bar tilted at an angle, and pressing it steps the air from pointing more horizontal to more downward.

Swing makes the louvers sweep back and forth on their own so the air spreads around the room instead of hitting one spot. The swing icon is often the same louver with arrows or a wavy line showing motion. On units that have it, there may also be a left/right vane control for side to side. If your model doesn’t have a feature, that button just won’t do anything, which is normal.

The timer

The timer lets you tell the system to turn on or off later. You’ll usually see a clock icon plus labels for an on-timer and an off-timer. Set a time, confirm it, and the unit handles the rest.

One thing to check if your system is “turning itself off”: make sure a timer isn’t set by accident. We see that one a lot. If there’s a timer icon on the display you didn’t put there, clear it.

The lights on the unit itself

Here’s a point that trips people up. Some indicators aren’t on the remote, they’re on the indoor unit, the little LEDs near the air handler. A steady light generally means it’s running or powered. A blinking or flashing light usually means the system wants your attention, and what it means depends on the model and which light is flashing.

We don’t want to put fake meanings to specific blink patterns, because they vary by unit and series, whether it’s an M-Series single-zone, an MXZ multi-zone, or a P-Series. If a light keeps flashing, or the unit won’t respond, that’s a sign to stop guessing and have it checked.

When the remote checks out but the system won’t behave

Run through the basics first. Right mode, setpoint on the correct side of the room temperature, fan running, no stray timer set, and fresh batteries in the remote (weak batteries make the signal flaky and the display faint). Point the remote right at the unit when you press a button.

If the icons are all correct and the system still won’t cool, heat, or even start, the problem is usually the equipment, not the handset. That’s where we come in.

We know these systems

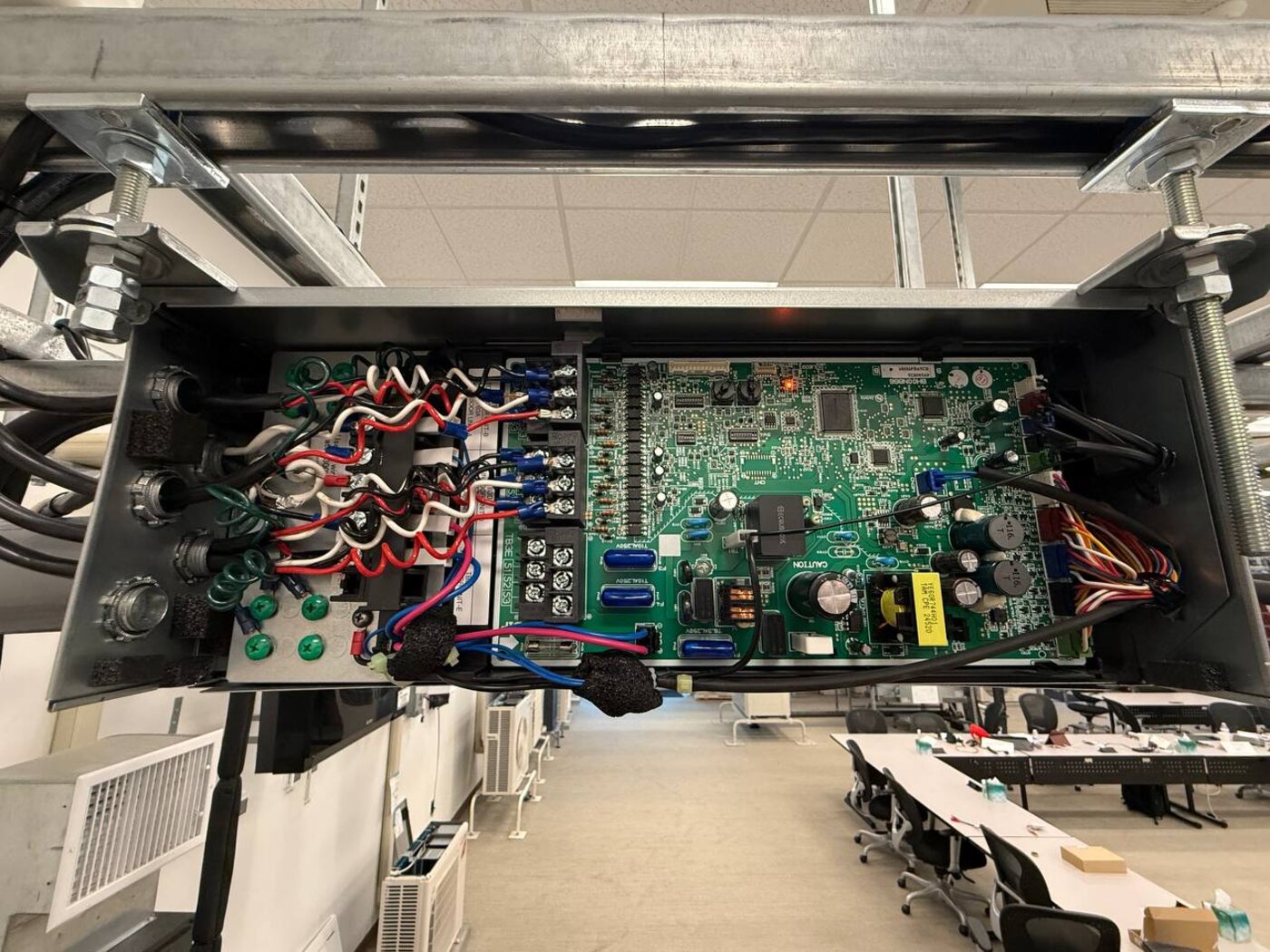

Bay Area HVAC Service is owned by Andrew Kuznetsov, based in San Ramon, licensed (CSLB #1136642) and EPA 608 certified. We’re Mitsubishi factory-trained on the M- and P-Series, including the advanced service course at the LA factory center, and we’re working toward Diamond Contractor status.

If your mini-split is acting up and the remote isn’t the culprit, we’ll give you a written estimate first. Our diagnostic is $75, and we credit it toward the repair if you go ahead. New installs come with 10-year parts and 10-year labor coverage. Give us a call and we’ll get it sorted.

Key takeaways

• The mode icons set what the system does: snowflake is cooling, sun is heating, water drop is dry/dehumidify, and the fan symbol is fan-only.
• Fan speed and the vane/swing controls change how much air moves and where it points, not the temperature.
• Lights on the indoor unit (not the remote) usually tell you about operating status, and a blinking light often means the system wants attention.
• When icons act strange or a light keeps flashing, that points to the unit or its settings, and a quick diagnostic clears up whether it's a setting or a real fault.
